Autel MaxiIM KM100X Universal Key Generator Kit. 2 Free IKeys

Note: Due to the vehicle concerns of the Renault Brand, we are sorry to inform that
Autel IMMO Tools(KM100X/IM508S/IM608S II) already removed all key lost functions+add key functions with security gateway unlock for 2019 models and the above.

Autel MaxiIM KM100X

The MaxiIM KM100X is a professional intelligent key tool that integrates such functions as universal key generation, transponder reading/cloning, and IMMO learning in a compact and easy-to-use design. Equipped with the MaxiVCI V200 vehicle communication interface device, this professional key tool easily offers you one-stop service from universal key generation to key learning. It is undoubtedly an ideal choice for professional locksmiths.

This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles(NOT included BENZ brand) and offers IMMO programming capability for multiple general vehicle brands model. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

CHIP Read & Clone & Write

The Reading and Cloning function allows you to read, clone, and edit the transponder information.

Transponder Reading: Transponder reading gives you the access to some basic information pertaining to the key, including chip type, IMMO type, transponder ID, locking status, and code mode. To read the transponder information, place the transponder into the transponder slot or put the key into the key slot and tap the Read button.

Transponder Cloning:You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach. The KM100X supports various transponder types for cloning and editing. Choose the corresponding cloning procedure according to your transponder identification number (ID)

Transponder Editing:This function helps you read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs.

Transponder Function:Generation & Simulation & Conversion between ID63 and ID83

Transponder Generation:With transponder generation, you can generate a transponder accommodating different protocols or models using a blank transponder.

Transponder Simulation:This function can be used to simulate the KM100X as a transponder using a variety of IMMO protocols. This function is particularly useful when your vehicle needs emergency start or such.

Conversion between ID63 and ID83:This function is especially designed for the conversion between two types of Ford transponder — ID63 and ID83. The conversion works both ways

Frequency Detection:The Frequency Detection function supports smart key frequency detection for a wide range of vehicle models. The operation instructions and frequency data will display on the screen in both text and graph forms.

Advanced IMMO Functions

Autel MaxiIM KM100X key fob programmer is able to do IMMO functions via OBD on 99% of vehicles, which is the most comprehensive coverage on the IM market. KM100X integrates all key IMMO-related functions such as Read PIN, Key Learning, Remote Learning, all-key-lost functions, IMMO ECU Reset/ Adaptation/ Refresh/ Coding, IMMO Data Backup/ Restore, etc.

Hot & Special Keys Functions

As a comprehensive key tool, the KM100X provides you with several practical special functions which consist of IMMO data processing, key unlocking, Toyota smart unlocking, universal key information detection, button adjustment, and ignition coil detection.

IMMO Data Processing: By using this function, you are allowed to load the IMMOrelated ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle. This processed transponder can be used to start the vehicle, in other words, you now have an extra key available.

Key Unlocking:This function enables you to renew a used smart key to unlock a new car. This is achieved by renewing the firmware of the used smart key via cable connection

Toyota Smart Unlocking:You may use this function to unlock other Toyota models with your Toyota smart key.

Universal Key Information Detection:This function is designed to read the Autel universal key information, including the serial number, key ID, and IMMO version, etc

Button Customization:By using the Button Customization function, you are able to assign the button functions on the Autel universal key.

Ignition Coil Detection:The Ignition Coil Detection function enables the key tool to gather the data pertaining to the IMMO protocol and transponder type of the vehicle.

Why Choose  Autel KM100X ?

• Free Update Online Lifetime
• No IP Blocking,You can use it everywhere
• Supporting 8 Key Series And 37 Models
• For More Than 90% Of Models
• Multi-Language Supported: English, German, Spanish, French, Polish, Portuguese, Italian, Dutch, Swedish, Russian, Korean, Japanese, Chinese

KM100X Specifications:

• OE-Level Quality
• Screen: Size: 5.5 Inch; Resolution: 1,280 x 720p
• Operation System: Android™ 9.0
• Processor: Rockchip PX30 4 x ARM Cortex-A35 (1.5 GHz)
• 64G Memory, 2G RAM
• 8MP Camera
• Wi-Fi and Bluetooth
• Battery: 4,950 mAh
• Operating Temp.: 0 to 50 °C (32 to 122 °F)
• Storage Temp.:-10 to 60 °C (14 to 140 °F)
• Dimension (L x W x H):200 x 89 x 22 mm
• Weight:352.7 g (0.78 lb.)

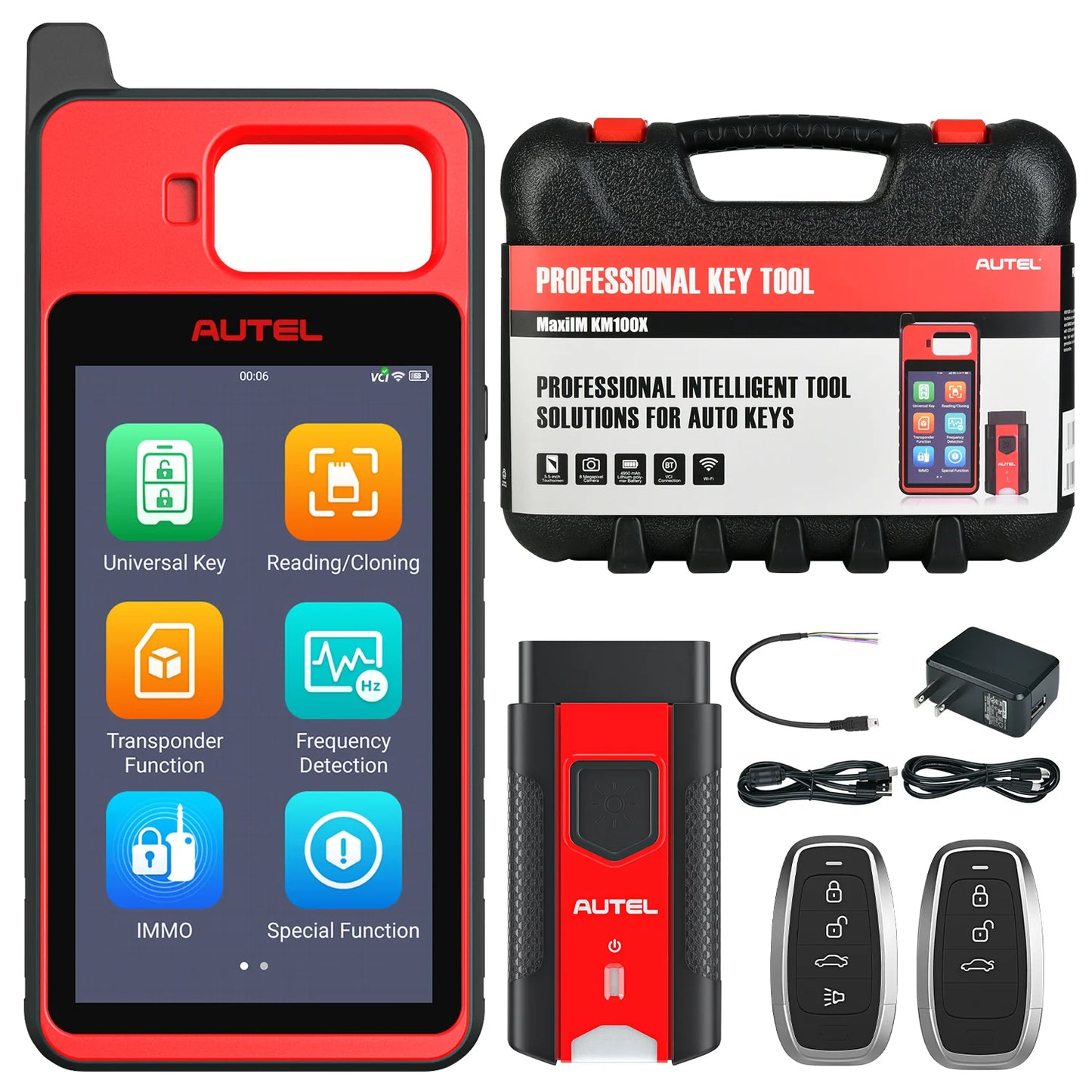

KM100X Package List:

• KM100X Main Unit
• MaxiVCI V200
• Universal Smart Key*2Pcs(Randomly selected,illustration for reference only)
• Power Adapter
• Type-C USB Cable
• Custom Mini USB Cable(for key programming)
• USB-C TO USB-C Cable
• Carring Case
• Quick reference Guide
• Packing List
