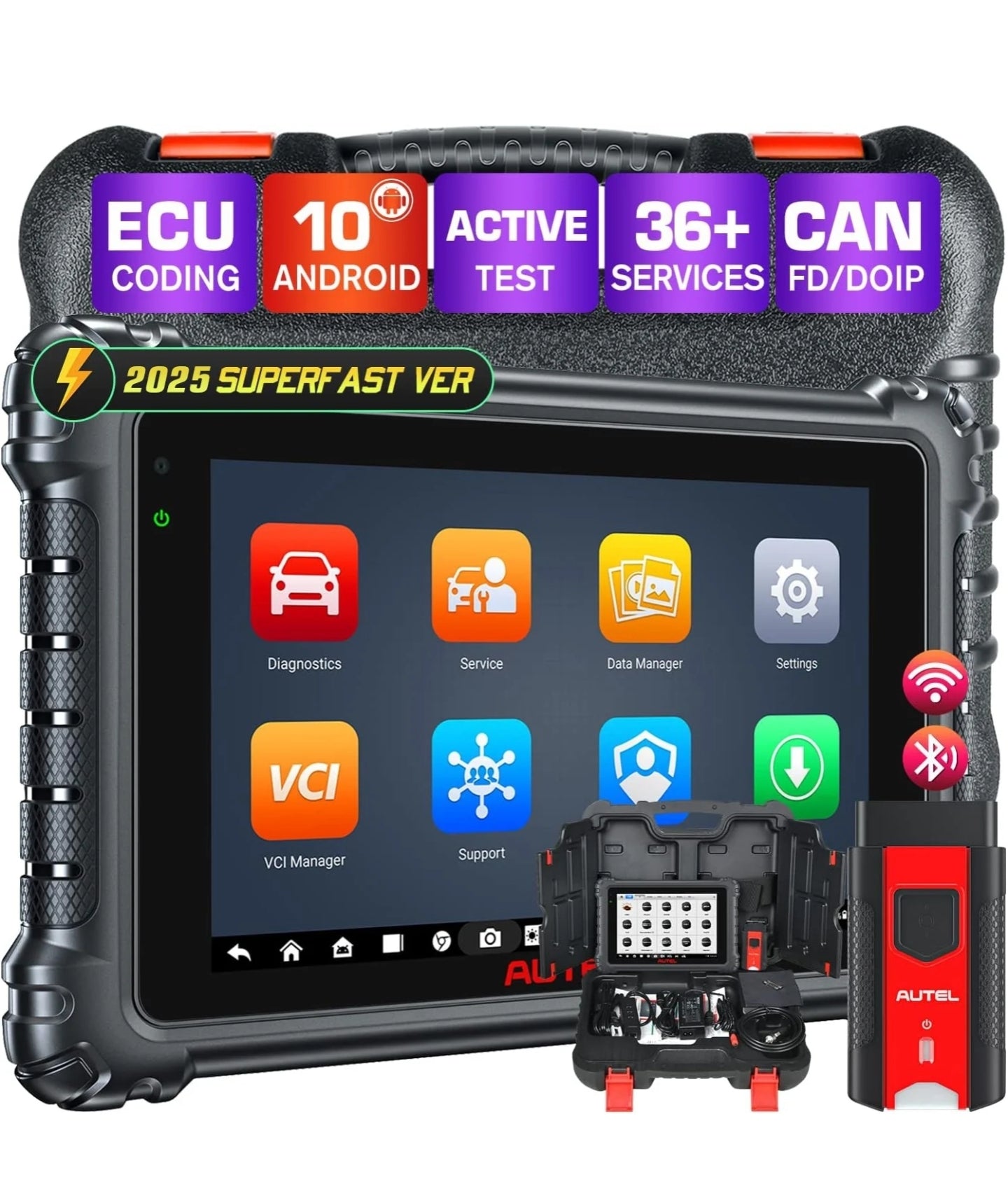

Autel MaxiCOM MK906S Pro

The MaxiCOM MK906S PRO is an advanced smart wireless diagnostics device providing specialized automotive diagnostic service for workshop and home-use customers.  Based on the multitasking mobile operating system, and combined with the best possible coverage of OE-level diagnostics, the MK906S Pro performs comprehensive and efficient vehicle diagnostics and analysis.

Upgraded of older MK906 Pro version ,2025 New MK906S Pro bring you a brand-new experience at the same cost.

- 8.0-inch TFT-LED Screen

- Faster Android 10

- Larger 4+128GB memory

- 2.4G & 5G dual Wi-Fi

- NO IP-block

- Long-lasting 11,600 mAh battery

- 16 MP front and rear camera

- Wireless MaxiVCI V200

- Advanced ECU coding

- Refresh Hidden Features for VW/Audi/Skoda

- 36+ reset service

- Bi-directional Control

- OE-level full system diagnosis

- Multi-Brand Vehicle

- Multi-language.



Advanced ECU Coding

Autel MK906S Pro professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the ECU via the VCI device for vehicle diagnosis, service or coding. You can enable or disable certain features or functions in a vehicle. enhanced control over their vehicles, allowing them to customize features, improve performance, and adapt the vehicle to their specific needs.

Accessing Manufacturer-Specific Codes: Provide access to manufacturer-specific codes, allowing users to perform coding functions that are specific to particular vehicle makes and models. This includes accessing hidden features or customizing various parameters within the ECU.

Enabling/Disabling Vehicle Options: Users can enable or disable specific options or features within a vehicle. For example, they can activate or deactivate functions like auto-locking doors, daytime running lights, or seat belt reminders. This level of customization allows users to tailor their vehicle's behavior according to their preferences.

Performance Tuning: Offer performance tuning capabilities, allowing users to enhance the performance of their vehicles. This includes adjusting engine parameters, such as fuel-to-air ratio, ignition timing, boost pressure, or throttle response. By optimizing these settings, users can improve power output, fuel efficiency, or overall driving experience.

Coding Retrofits: Support coding retrofits, which means users can add new components or modules to their vehicles and code them into the existing ECU. For example, if a user wants to install aftermarket headlights, they can code the ECU to recognize and control the new headlights properly.



OE-Level Full System Diagnosis

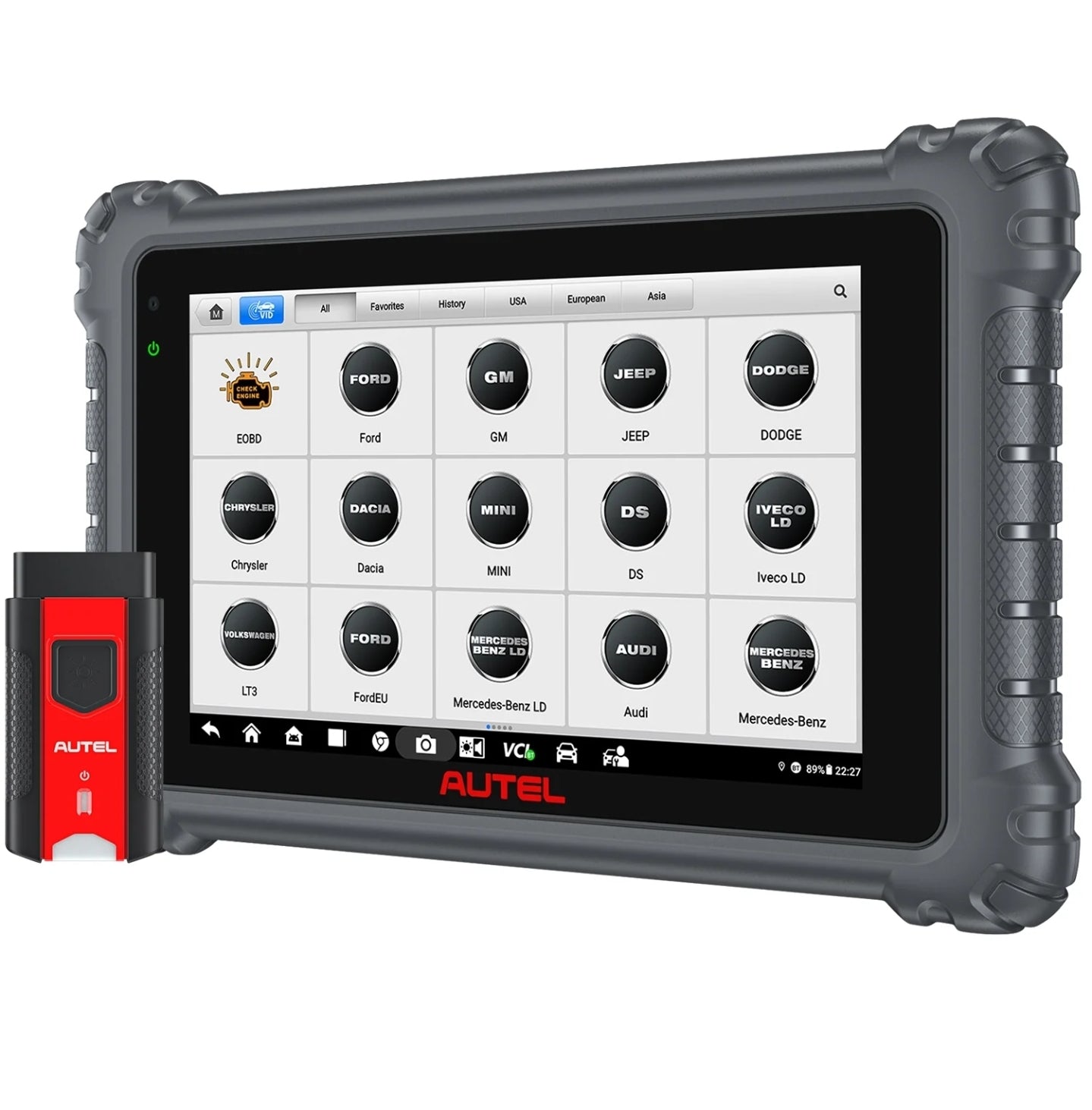

MK906S Pro can Read and Erase Codes on all available vehicle systems,Exceptional OE-Level system coverage for all electronic systems,View Freeze Data and view and graph Live Data, Compatible with EU/US/Asia vehicles, from 1996 to newer 2025.



Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.

Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.

Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.

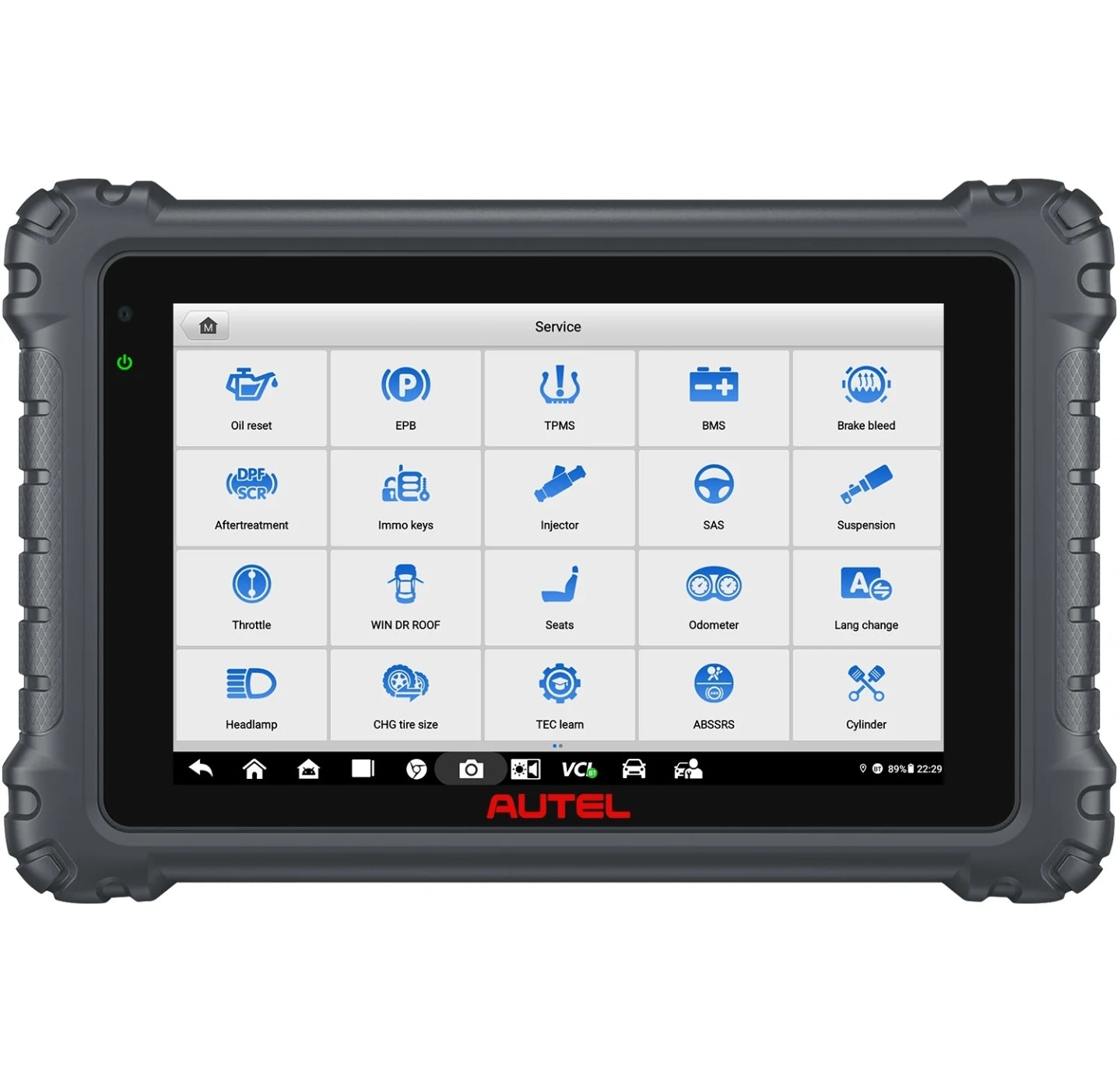

36+ Reset Services

Autel MaxiCOM MK906S Pro, bluetooth scanner is loaded with 36+ reset functions for in-depth and comprehensive repairing & maintenance.

• Oil Reset - This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.

• EPB - This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc

• SAS - The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared.

• DPF - The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

• Seat Calibration: Calibrate the memory in replaced or repaired seats

• Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator

• A/F Reset: Set or learn Air/Fuel ratio parameters

• Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality

• Suspension Reset: Adjust the vehicle body height sensor for level calibration

• Brake Bleed - ABS Brake Bleeding

• ​​BMS - Battery registration and reset

• More reset functions like Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.



Bi-Directional Control (Active Test)

MaxiCOM MK906S Pro automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

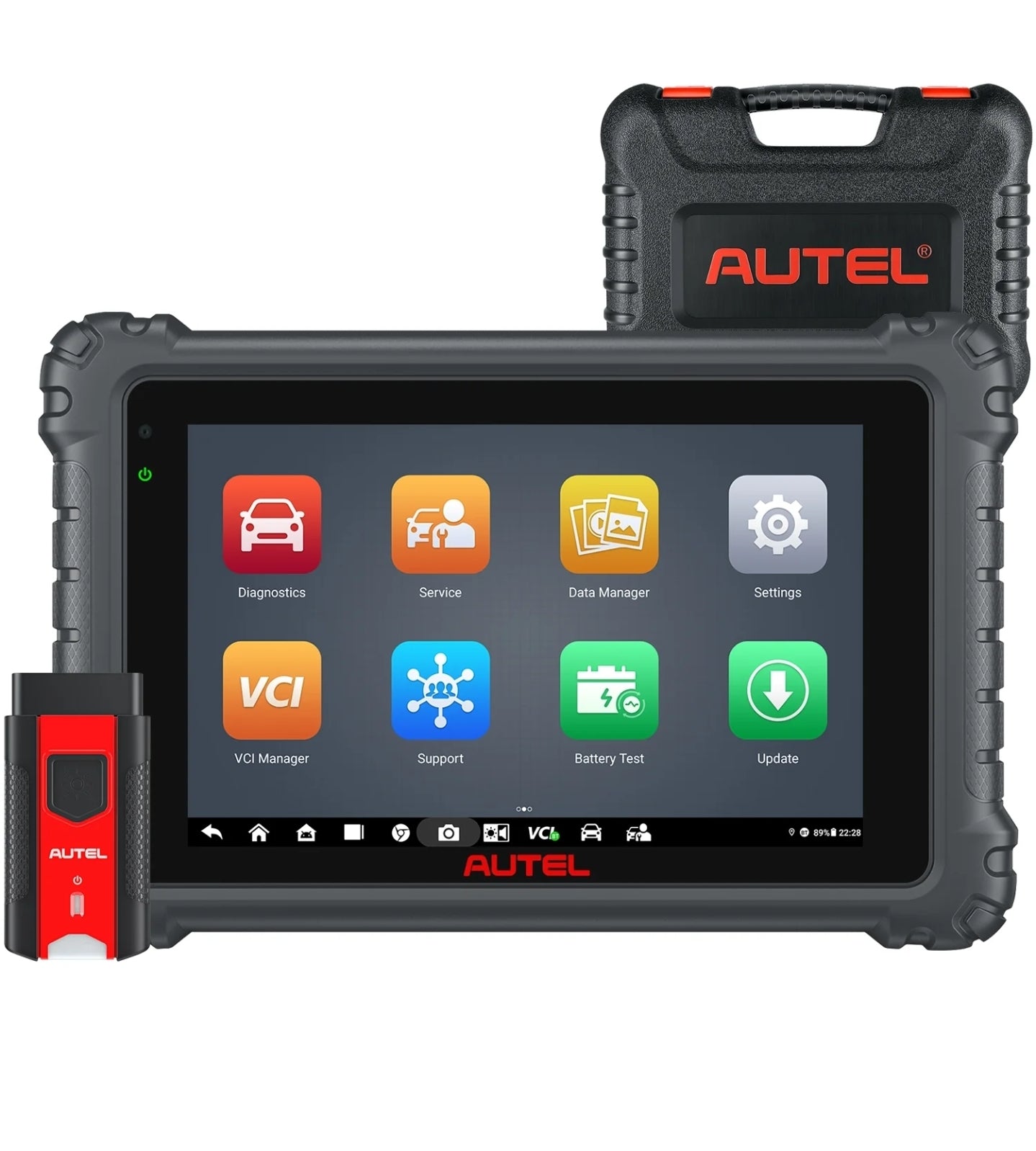

Autel MaxiCOM MK906S Pro Main Features

• 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Samsung Exynos Octa-core processor with 128 GB storage and running Android 10.0 operating system.

• Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.

• MaxiCVI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols.

• Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles

• AutoScan: Scan all available systems

• Advanced ECU Coding

• Refresh Hidden Features for VW/Audi/Skoda

• 36+ Rest Functions

• Read/Erase Codes, View Freeze Frame and Live Data

• Perform Active Tests (bi-directional controls), Coding and Adaptations

• AutoVIN/Scan VIN for rapid vehicle identification

• Cloud-based Reports and Data Management

• Work with Autel MV108S/BT506 For more functions

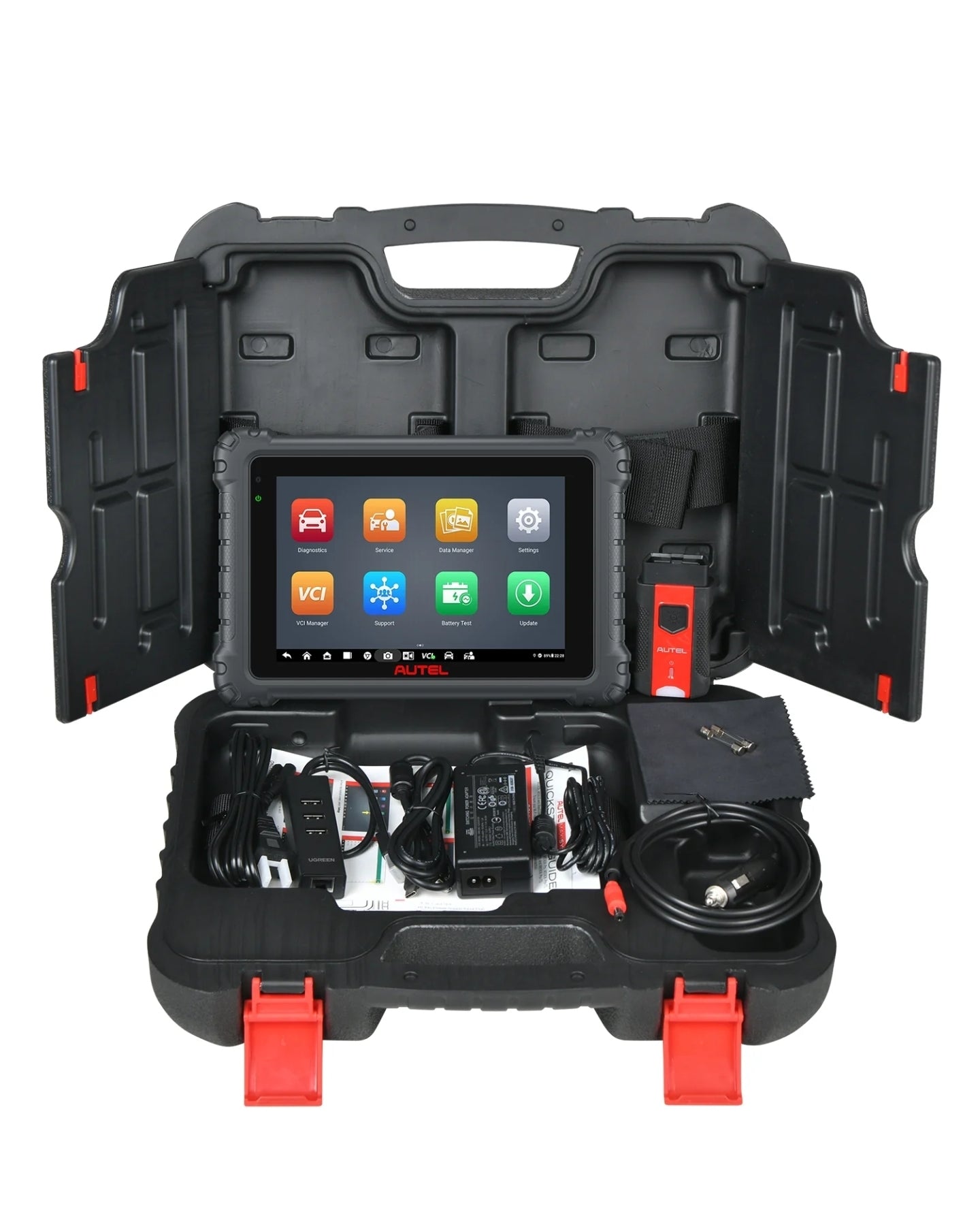

Autel MaxiCOM MK906S Pro Package List

• 1x MaxiCOM MK906S Pro main unit

• 1x MaxiVCI V200

• 1x AC/DC Adapter (12V)

• 1x Type C USB Cable

• 1x Cigarette Lighter Adapter

• 2x Spare Fuse(6*30mm)

• 1x USB to Ethernet Adapter

• 1x Soft Cloth

• 1x User Manual

• 1x Packing List

• 1x Carrying Case

• 1x Quick Reference Guide
