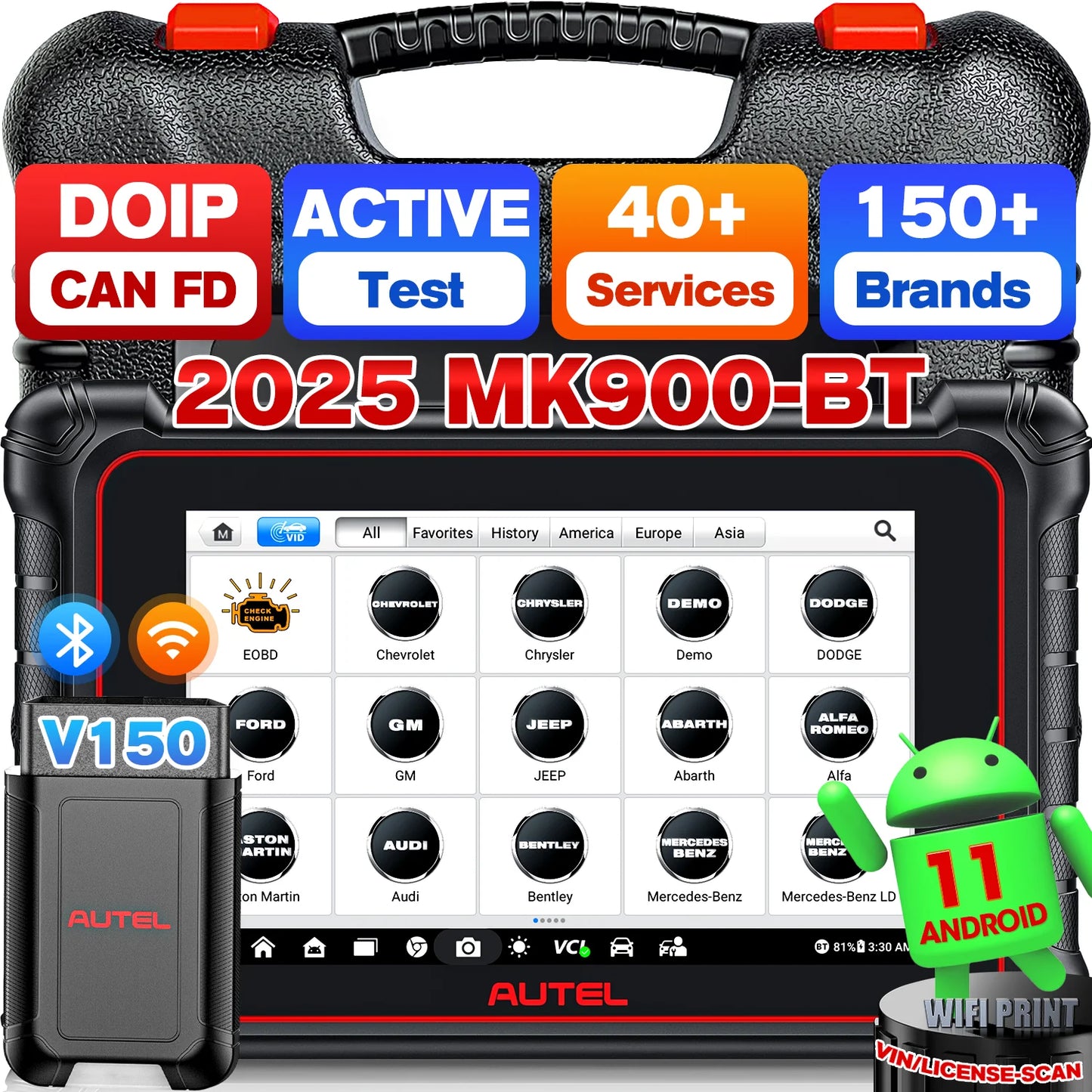

Autel Maxicom MK900BT OBDII

2025 New Released- Autel MaxiCOM MK900BT

Autel Maxicom MK900BT Pro is the updated version of Maxicom MK808BT, Based on the ✅Android.11 multitasking operating system,✅8 inches LCD screen,✅4GB+64GB memory,✅7700mAh battery,Most important ,it has a ✅8M Rear Camera.✅Pre&Post Scan✅Wifi Print✅40+ Service✅Full System Diagnosis.✅1 Year Free Update

And with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the Maxicom MK900BT is your ideal auto diagnostics and service tool, providing you with superior functions.

OE-Level All System Diagnosis For 150+ Brands

Bluetooth OE Level All System Diagnosis- Autel MaxiCOM MK900BT diagnostic tool can access and diagnose All available vehicle modules wirelessly. Works well on 150+ car makes and models worldwide (1996 and newer) to perform OE level diagnostics: read and clear codes, view live data, retrieve ECU info, and show live data in text, graph or analog.

Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.

40+ Special Reset Services

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances.
By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.

Oil Reset: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
EPB: This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc
SAS: The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared.
DPF: The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
Brake Bleed: ABS Brake Bleeding
Seat Calibration: Calibrate the memory in replaced or repaired seats
Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
A/F Reset: Set or learn Air/Fuel ratio parameters
Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
Suspension Reset: Adjust the vehicle body height sensor for level calibration
BMS: Battery registration and reset
And More......

Bi-Directional Control/3000+Active Test

The Active Test function is used to access vehicle-specific subsystem and component tests. During an active test, the tablet sends commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

Autel MaxiCOM MK900BT Package List

1 x MK900BT Tablet
1 x MaxiVCI V150
1 x Power Adapter
1 x USB Cable
1 x Quick Reference Guide
1 x Carring Case
